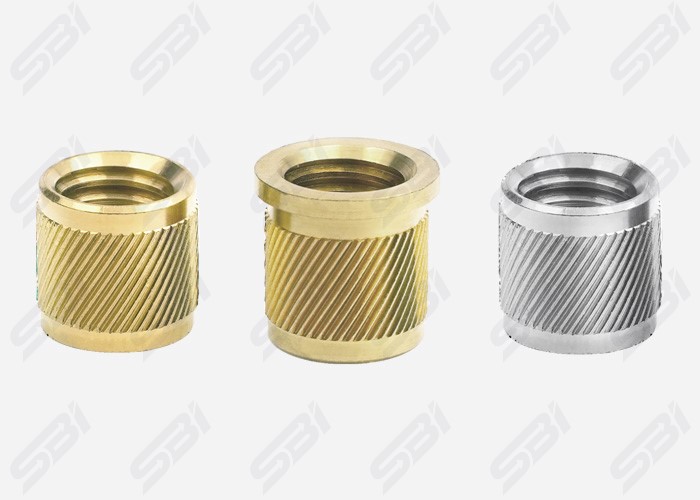

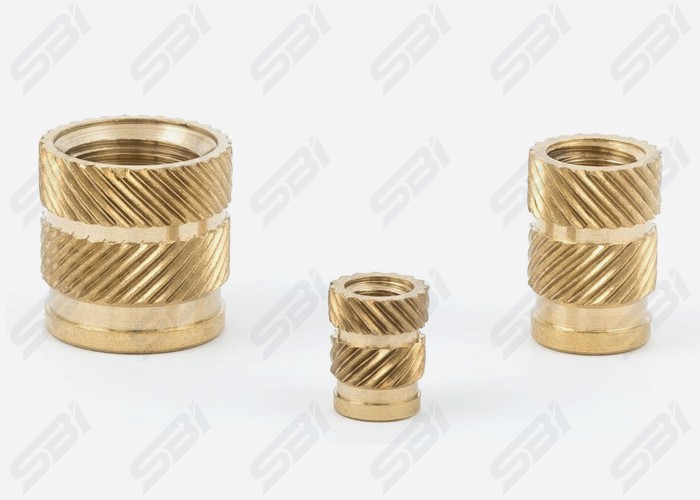

Brass Press-In Inserts
Brass Press-In Inserts
We are a leading press-in insert manufacturing company, providing a wide range of standard and non-standard inserts in a variety of materials, sizes, types, and quantities. The simplest press-in inserts typically consist of an internal thread with a diamond knurl on the outer diameter, leaving a short length smooth. A partial slit runs the length of the knurls, allowing a degree of elastic deflection inward. A flange on the head side can greatly improve pull-through strength while straight knurls can help resist torque-out. To forego a slit or knurls, a hex body with a simple barb profile addresses both torque-out and pull-out with limited tooling.
Specification
| Material : | » IS 319 Brass Free Cutting. » As per BS-249 Free Cutting Brass Material. » High Grade Free Cutting. » Any Special Brass Material Composition on Request. |
||
| Threads : | » ISO Metric, MM, PG, BSW, BSP, BSB, BSF, BA, NPT, NPTF, UNC, UNF, UNEF » Any threads as per customer's design |
||
| Length / Size : | » Any size as per customer specification | ||
| Finish And Coating : | » Natural, Nickel Plated, Tin Plated » Any coating as per customer specification |
||
Features
Our brass press-in inserts are available in various grades and specifications to match the most complex requirements of customers.
- Provide pull-out and torque-out resistance.
- Provides strong, reusable threads. No heat or ultrasonics required.
- Offer good resistance to heat and chemicals.
- Provide a reliable and durable threaded hole solution without the risk of stripping threads in softer materials.
- Knurls or barbs on the outer surface prevents the insert from rotating or loosening over time.
